It’s that time of the year again - Kubernetes deployment season!

Every few months there’s a new Kubernetes release - it’s like a haunted festivus every season! So many new patches! Exciting new APIs! A cornucopia of CVEs!

I’ve been running a cluster via DigitalOcean’s Kubernetes Service for the last year plus and it was a terribly old version. I kept getting emails about it needing to be updated and not being able to due to a number of API changes so I decided to deploy a whole new cluster and port the workloads over.

Of course, I had automated and documented the process - and of course in that time it all broke and changed. So time to automate and document again!

This time I’m going for the most simple deployment, fewer pieces to break and all - plus there isn’t really much that’s needed in my personal cluster.

This deployment consists of the following:


Spooky Dance - Binary Bash

Of course to do much of anything there are a few binaries needed such as:


Deploying the Kubernetes Cluster

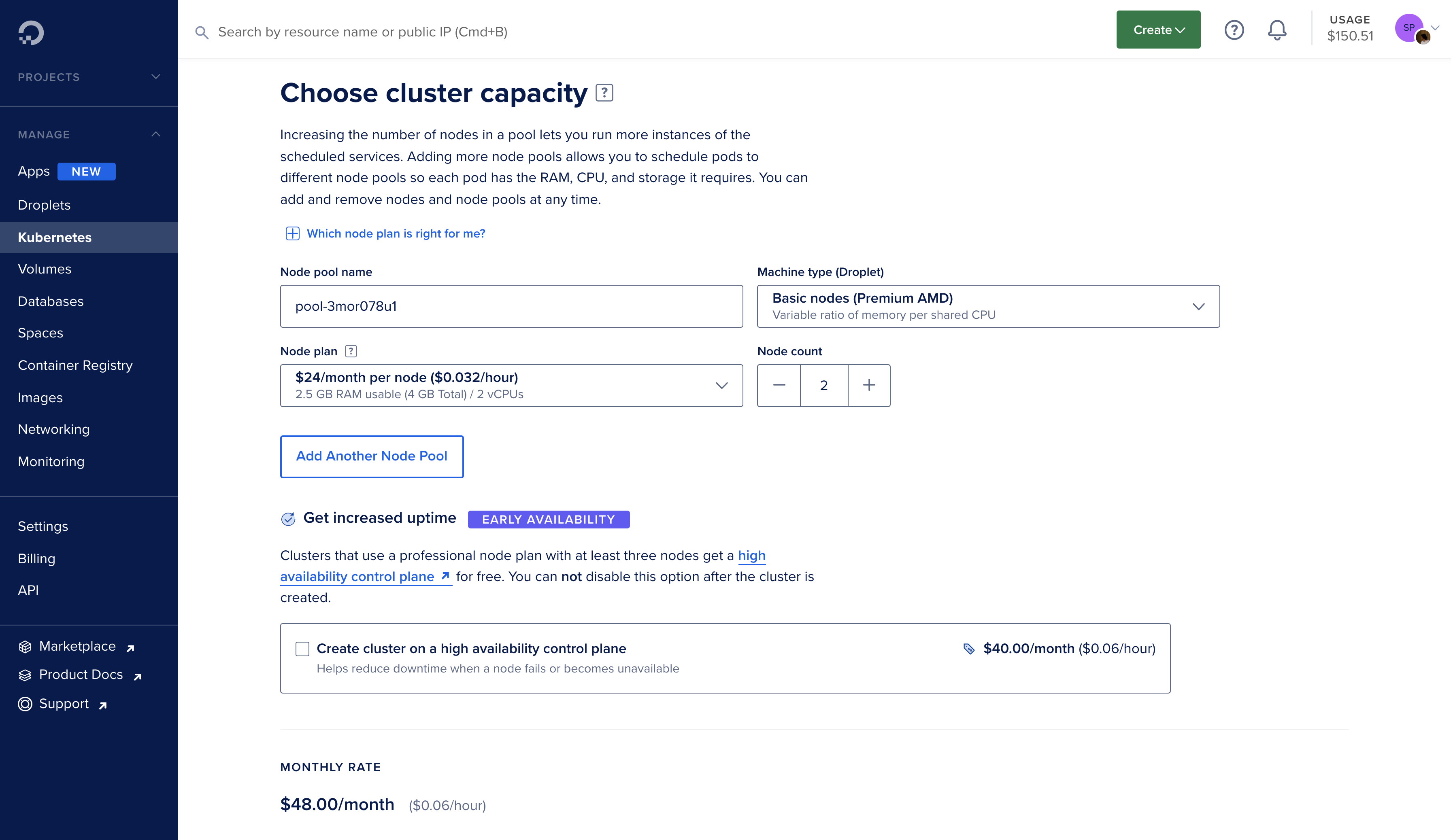

This part is pretty simple, I deployed a 2 Worker Node cluster, with the AMD CPUs of course since I’m a fanboy.

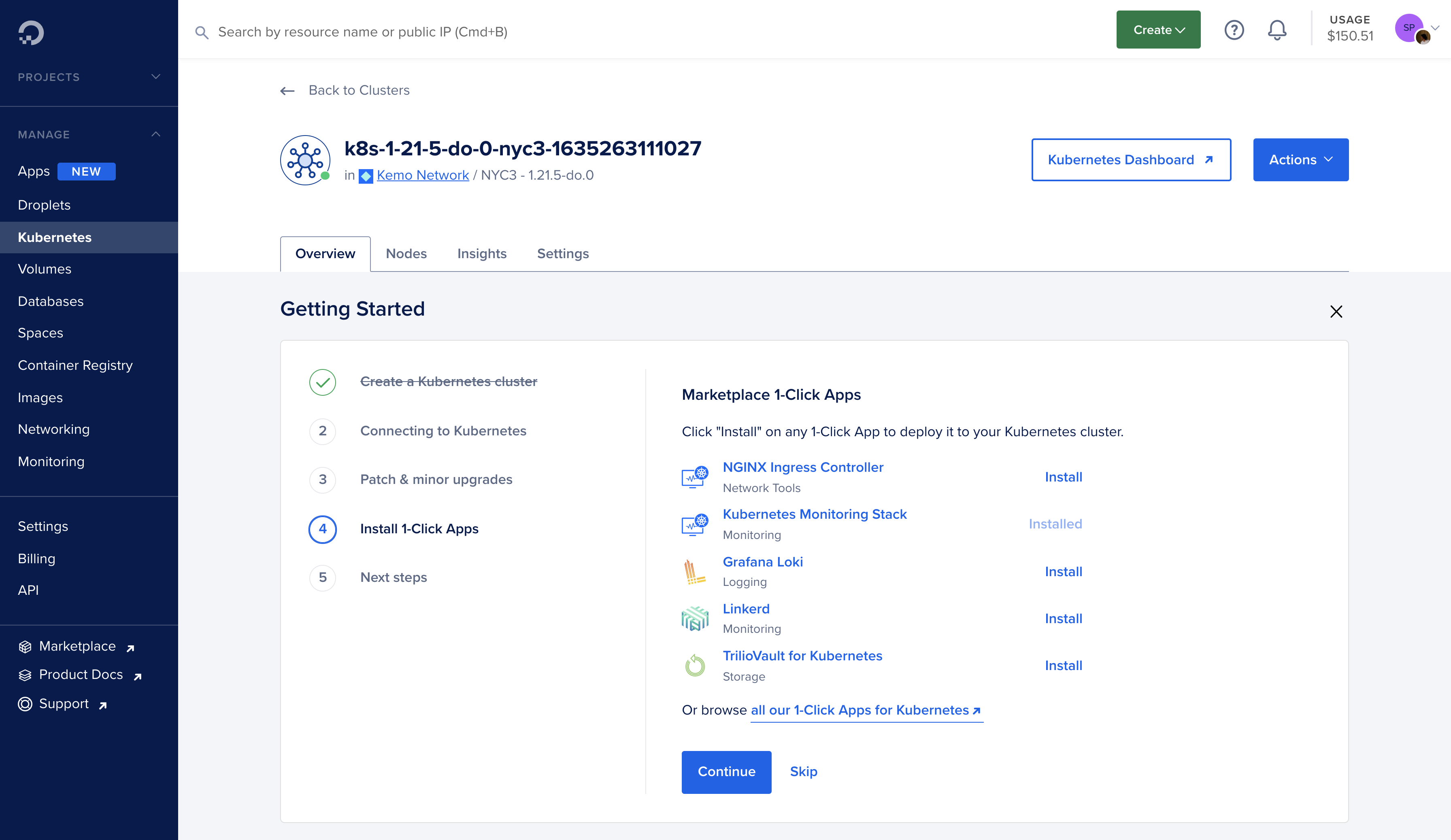

Once the cluster is deployed, just use the Marketplace 1-click Apps to deploy the monitoring stack.

From here you can jump into the Kubernetes Dashboard with the big button in the DigitalOcean panel - or if you prefer working with the CLI, you can pull your cluster’s kubeconfig with a DigitalOcean Personal Acess Token and the following:

# Authenticate with doctl
doctl auth init

# Pull kubeconfig
doctl kubernetes cluster kubeconfig save $DO_CLUSTER_ID

# Test server conneciton
kubectl cluster-info

Deploying Ingress

With the cluster and monitoring deployed we can now start to run workloads, but we still need to access some of them externally - we do this via an Ingress.

There are a number of options but the one that’s maintained by the Kubernetes community fits the bill pretty well, ingress-nginx - not to be confused by Nginx Ingress.

On DigitalOcean most Ingress Controllers will make a LoadBalancer object, which will in turn create an actual Network Load Balancer in the associated account. This load balancer will point to the application nodes with proper health checks and all.

The problem with that is that the traditional ingress-nginx manifest sets up a Deployment which will only run on one node and causes all but 1 node in the load balancer pool to fail their health checks. To resolve this issue we’ll modify the manifest to use a DaemonSet instead of a Deployment, this way the Ingress Controller will run an instance on every node.

And this is the mainfest to do just that!

---
apiVersion: v1
kind: Namespace
metadata:
  name: ingress-nginx
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx

---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
  allow-snippet-annotations: 'true'
  use-proxy-protocol: 'true'
  custom-http-errors: '404,500,503'
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
    verbs:
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ''
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ''
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ''
    resources:
      - configmaps
    resourceNames:
      - ingress-controller-leader
    verbs:
      - get
      - update
  - apiGroups:
      - ''
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ''
    resources:
      - events
    verbs:
      - create
      - patch
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ports:
    - name: https-webhook
      port: 443
      targetPort: webhook
      appProtocol: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml
apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/do-loadbalancer-enable-proxy-protocol: 'true'
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  type: LoadBalancer
  externalTrafficPolicy: Local
  ipFamilyPolicy: SingleStack
  ipFamilies:
    - IPv4
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
      appProtocol: http
    - name: https
      port: 443
      protocol: TCP
      targetPort: https
      appProtocol: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: DaemonSet
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/component: controller
  revisionHistoryLimit: 10
  minReadySeconds: 0
  template:
    metadata:
      labels:
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/component: controller
    spec:
      dnsPolicy: ClusterFirst
      containers:
        - name: controller
          image: k8s.gcr.io/ingress-nginx/controller:v1.0.4@sha256:545cff00370f28363dad31e3b59a94ba377854d3a11f18988f5f9e56841ef9ef
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown
          args:
            - /nginx-ingress-controller
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
            - --election-id=ingress-controller-leader
            - --controller-class=k8s.io/ingress-nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
            - --default-backend-service=ingress-nginx/nginx-errors
          securityContext:
            capabilities:
              drop:
                - ALL
              add:
                - NET_BIND_SERVICE
            runAsUser: 101
            allowPrivilegeEscalation: true
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: LD_PRELOAD
              value: /usr/local/lib/libmimalloc.so
          livenessProbe:
            failureThreshold: 5
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
            - name: https
              containerPort: 443
              protocol: TCP
            - name: webhook
              containerPort: 8443
              protocol: TCP
          volumeMounts:
            - name: webhook-cert
              mountPath: /usr/local/certificates/
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/controller-ingressclass.yaml
# We don't support namespaced ingressClass yet
# So a ClusterRole and a ClusterRoleBinding is required
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: nginx
  namespace: ingress-nginx
spec:
  controller: k8s.io/ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  name: ingress-nginx-admission
webhooks:
  - name: validate.nginx.ingress.kubernetes.io
    matchPolicy: Equivalent
    rules:
      - apiGroups:
          - networking.k8s.io
        apiVersions:
          - v1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    failurePolicy: Fail
    sideEffects: None
    admissionReviewVersions:
      - v1
    clientConfig:
      service:
        namespace: ingress-nginx
        name: ingress-nginx-controller-admission
        path: /networking/v1/ingresses
    timeoutSeconds: 29
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - ''
    resources:
      - secrets
    verbs:
      - get
      - create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: pre-install,pre-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-create
      labels:
        helm.sh/chart: ingress-nginx-4.0.6
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 1.0.4
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: create
          image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1@sha256:64d8c73dca984af206adf9d6d7e46aa550362b1d7a01f3a0a91b20cc67868660
          imagePullPolicy: IfNotPresent
          args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
            - --namespace=$(POD_NAMESPACE)
            - --secret-name=ingress-nginx-admission
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
  annotations:
    helm.sh/hook: post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.0.6
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: 1.0.4
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-patch
      labels:
        helm.sh/chart: ingress-nginx-4.0.6
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: 1.0.4
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: patch
          image: k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1@sha256:64d8c73dca984af206adf9d6d7e46aa550362b1d7a01f3a0a91b20cc67868660
          imagePullPolicy: IfNotPresent
          args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=$(POD_NAMESPACE)
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux
      securityContext:
        runAsNonRoot: true
        runAsUser: 2000
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-errors
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: nginx-errors
    app.kubernetes.io/part-of: ingress-nginx
spec:
  selector:
    app.kubernetes.io/name: nginx-errors
    app.kubernetes.io/part-of: ingress-nginx
  ports:
  - port: 80
    targetPort: 8080
    name: http
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-errors
  namespace: ingress-nginx
  labels:
    app.kubernetes.io/name: nginx-errors
    app.kubernetes.io/part-of: ingress-nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app.kubernetes.io/name: nginx-errors
      app.kubernetes.io/part-of: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/name: nginx-errors
        app.kubernetes.io/part-of: ingress-nginx
    spec:
      containers:
      - name: nginx-error-server
        image: kenmoini/custom-nginx-ingress-errors:latest
        ports:
        - containerPort: 8080
        # Setting the environment variable DEBUG we can see the headers sent
        # by the ingress controller to the backend in the client response.
        # env:
        # - name: DEBUG
        #   value: "true"

Give it a few minutes and you should see a Load Balancer spin up in your DigitalOcean account.


Automatic TLS with cert-manager

So now we have a way to get into the cluster with an Ingress and that Ingress provides HTTP and HTTPS with a self-signed certificate. What would be nice is to have some SSL certificates that were signed by a CA that’s in the default set of trusted certificate stores, ya know, like Let’s Encrypt.

Let’s Encrypt provides free SSL Certificates for anyone with a publicly accessible fully qualified domain name (FQDN). The protocol used to do so is called ACME and there are two Solvers provided by Let’s Encrypt - an HTTP01 Solver that will verify domain ownership via a /.well-known/ path check, and a DNS01 Solver that can verify domain ownership via dynamically generated TXT records if you have a supported API-powered DNS provider like Route53, or in this case, DigitalOcean Domains.

Now, Let’s Encrypt issues certificates for 3 months at a time, which means not only do we need a way to request them automatically, but there needs to be a way to automatically renew them. This is where cert-manager comes in to play.

To deploy cert-manager we’ll use Helm - assuming you already have the Helm binary installed:

## Add the Jetstack repo
helm repo add jetstack https://charts.jetstack.io

## Update the local repo defintions
helm repo update

## Install cert-manager
helm install cert-manager jetstack/cert-manager --namespace cert-manager --create-namespace --version v1.6.0 --set installCRDs=true

Now that cert-manager is installed, let’s make a ClusterIssuer since namespaced Issuers are dumb for a non-multi-tenant or multi-provider environment.

To do so, first you need to make a Secret with a DigitalOcean Personal Access Token for the cert-manager ClusterIssuer to use - you can do so with the following:

kubectl create secret generic do-dns-pat --from-literal=access-token=YOUR_DO_PAT_TOKEN

With that you can kubectl apply the following ClusterIssuer:

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-dns-prod
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    email: you@example.com
    privateKeySecretRef:
      name: letsencrypt-dns-prod
    solvers:
    - dns01:
        digitalocean:
          tokenSecretRef:
            name: do-dns-pat
            key: access-token

Deploy Your First Ingress

With everything in place now, we can start to deploy workloads and exposing them to the internet - but which will we expose first? Why not Grafana? It is running already in the cluster from our Monitoring stack deployed earlier after all…

kind: Ingress
apiVersion: extensions/v1beta1
metadata:
  name: grafana-ingress
  namespace: kube-prometheus-stack
  labels:
    app: kube-prometheus-stack
    app.kubernetes.io/name: kube-prometheus-stack
    app.kubernetes.io/part-of: kube-prometheus-stack
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-dns-prod
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/ssl-redirect: 'false'
spec:
  tls:
    - hosts:
        - grafana.your.domain
      secretName: grafana-k8s-tls
  rules:
    - host: grafana.your.domain
      http:
        paths:
          - path: /
            pathType: Prefix
            backend:
              serviceName: kube-prometheus-stack-grafana
              servicePort: 80

A few things to pay attention to:

  • Name, namespace, and app labels of course
  • The 3 annotations state which cluster-issuer to use, what sort of Ingress Controller (since there can be multiple, see Service Mesh), and if you want to force HTTP > HTTPS redirects or not. There are plenty of other annotations available as well in case you want to do other things to the underlying Nginx instances.
  • The .spec.tls[*].hosts and .spec.rules[*].host definitions for what domain name to use - this needs to be part of a zone that is already active in your DigitalOcean Domains.

And the rest are to do with the specifics of the service, in this case targeting port 80 on the Grafana service.

With that you can navigate to https://grafana.your.domain/ and insert the default credentials of admin and prom-operator - of course making sure to change both of those since it is being exposed to the Internet and all now.

Dashboard for your Dashboards


Bonus - Custom Ingress Errors

So if you happen to get a 404, 50x HTTP error on an Ingress you’ll be presented with a generic and blank Nginx error page. Thankfully, the deployment above makes the error pages a little more exciting…

Synthwave Error Pages


Next Steps

Well, from here you’d deploy real workloads and their Ingresses. You may decide to deploy a Service Mesh, maybe some agents for your CI/CD pipelines, etc, but at least this cluster is now functional enough to use without having to bemoan over setting up so much the hard way.
